Description
888 Countdown Timer Signals
For the yellow digital, the maximum display digital is 9.
The first one or two cycles are for memorizing time. The countdown function starts from the second or third cycle.

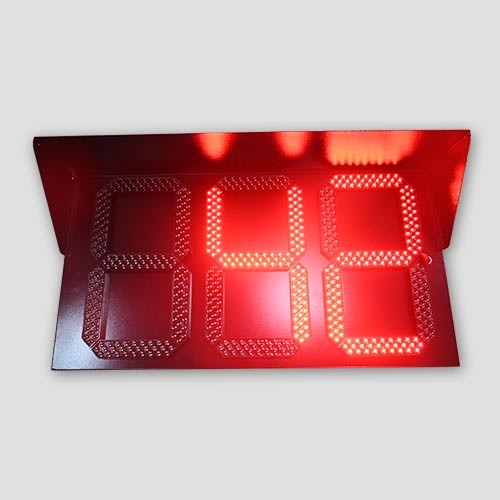

When the red digital displays, the car should stop moving. The maximum display digital is 999.

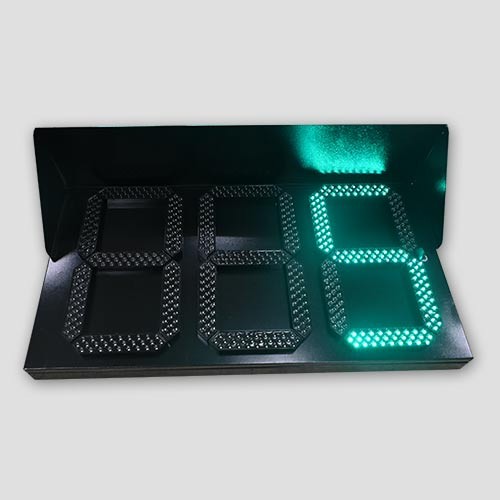

When the green digital displays, the car can move forward the street. The maximum display digital is 999.
|
Description |
Dimension |
Packing Size(cm) |
IP Grade |
Visor material |
Weight (kg) |
||
|
countdown timer |

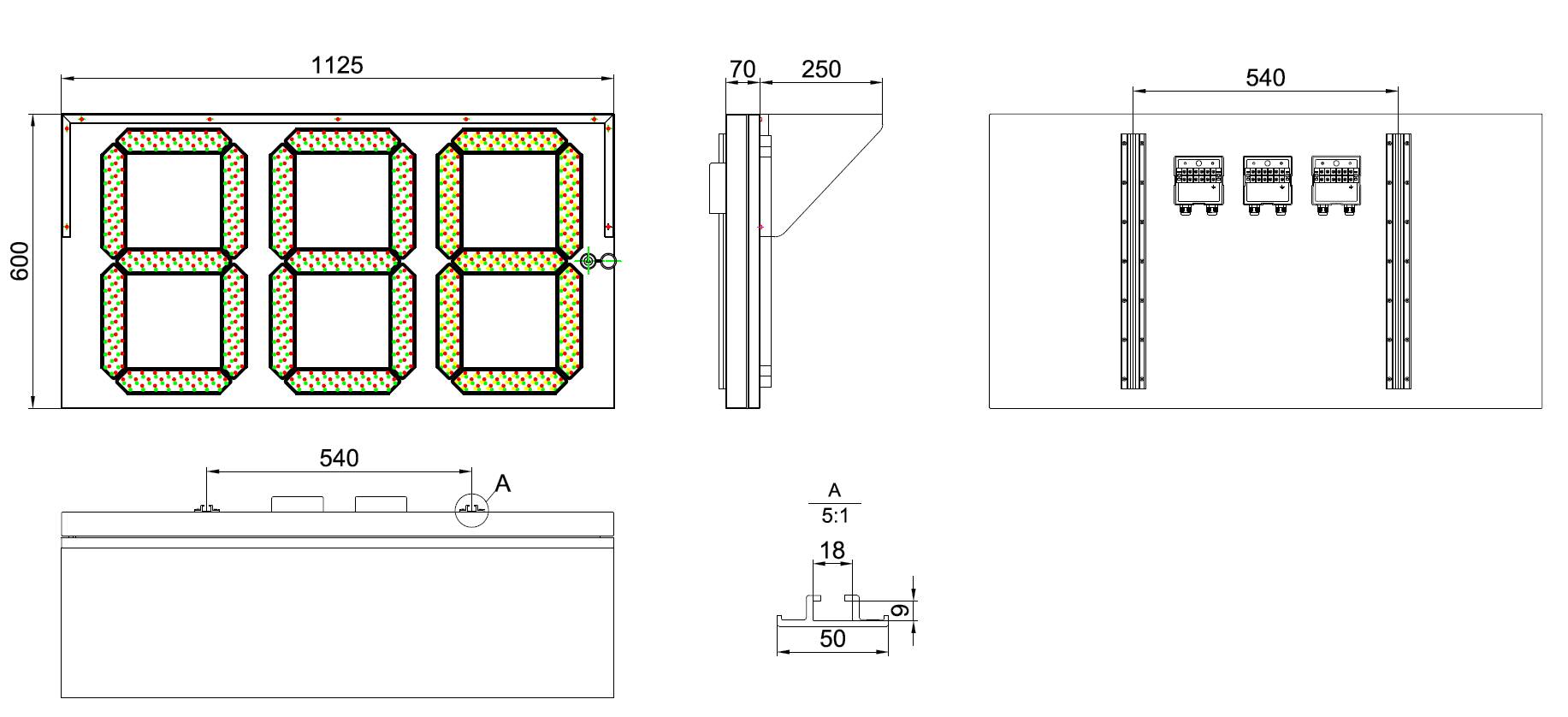

1125mm*600mm*70mm |
2pcs in 1ctn, 120*33*67 |
IP55 |
Aluminum |
20/pcs |
||
|
Model |
Color |
Power Factor |
LED quantities |
OperationTemperature |
Turn on/off time |
Voltage |
Rated Power |
|
Countdown modules (888) |
Red |
>90% |
/ |
-40°F~+165°F |
≤75ms |
90vac-240vac |
＜28w |
|
Countdown modules (8)
|
Yellow |
>90% |
/ |
-40°F~+165°F |
≤75ms |
90vac-240vac |
＜10w |
|
Countdown modules (888)
|
Green |
>90% |
/ |
-40°F~+165°F |
≤75ms |
90vac-240vac | ＜28w |
