EN12368 Certified One Section Left Arrow LED Traffic Head

Model: JD200-3-1R, 200mm

Distribution of Luminous Intensity: S2

Symbol Class: S2

Comply with CE, EN12368, RoHS, ISO9001

EN12368 Certified One Section Left Arrow LED Traffic Head

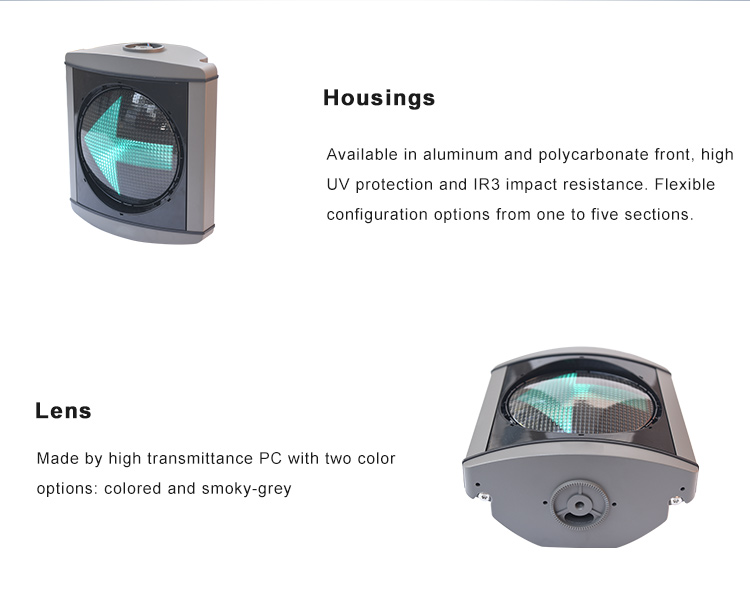

Retrofit design ＆ UV stabilized shell

Wide viewing angles& low power consumption

Even brightness ＆ standard chromatogram

Compatibility with most traffic housings and controllers

Description		Distribution of Luminous Intensity		Dimension(mm)		Housing Material	Housing Color	Weight (kg)
200mm traffic head		S2		488 X 272 X 136		Aluminum	Grey	9kgs/pc
Color	Diameter	Typical Wavelength	Phantom Class	Impact Resistance	Symbol Class	Turn on/off time	Voltage	Rated Power
Green	Φ200mm	505nm	5	IR3	S2	≤75ms	176vac-264vac	12w
