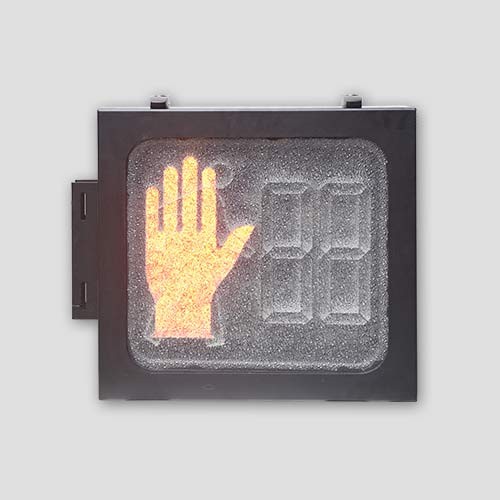

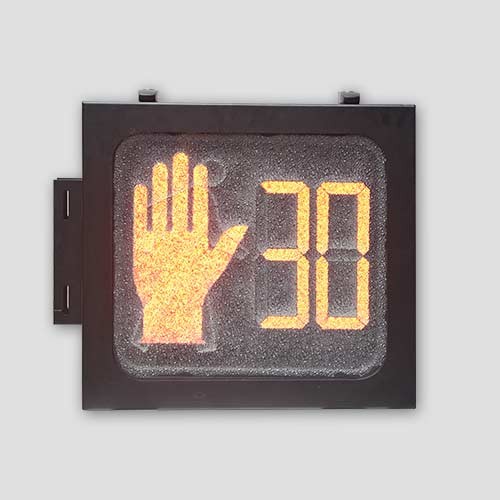

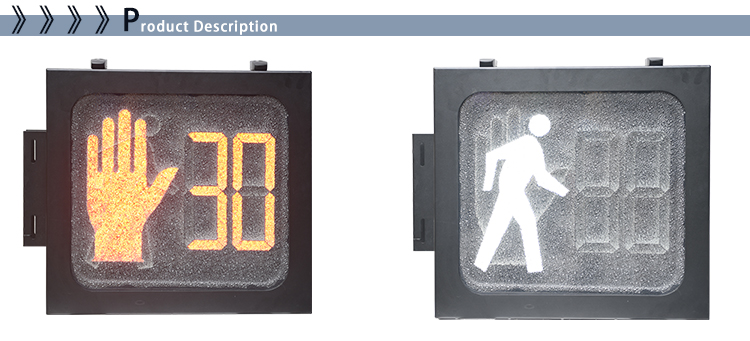

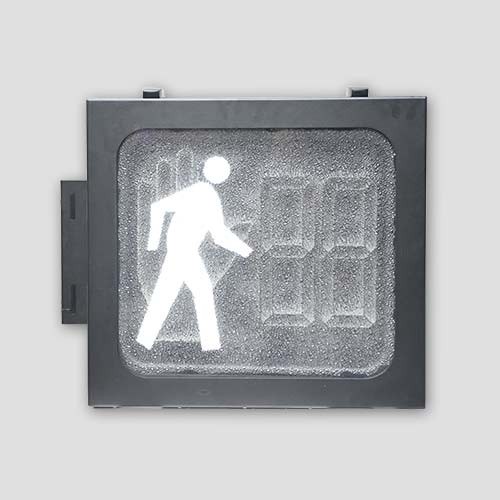

Aluminium Housing 16*18 Led Pedestrian Hand Traffic Signal With Countdown Timer

MR400-HMC

Luminance>3000cd/m2 , SMD LEDs

Long lifetime more than 100,000 hrs

Comply with ITE, ISO9001

Aluminium Housing 16*18 Led Pedestrian Hand Traffic Signal With Countdown Timer

Retrofit design ＆ UV stabilized shell

Wide viewing angles& low power consumption

Even brightness ＆ standard chromatogram

Compatibility with most traffic housings and controllers

Description	Luminance		Packing Size(cm)		IP Grade	Lens Feature	Weight (kg)
16”*18” Pedestrian	>3000cd/m2		5pcs in 1ctn,454560		IP65	Foggy PC	3.5
Model	Symbols	Power Factor	Conform to	Operation Temperature	Turn on/off time	Voltage	Rated Power
MR400-HMC Pedestrian with countdown	White man Amber Hand & countdown	>90%	ITE standard	-40°F~+165°F	≤75ms	120vac-230vac	8w
MR400-HM Pedestrian without countdown	White man Amber Hand	>90%	ITE standard	-40°F~+165°F	≤75ms	120vac-230vac	8w

Red hand(man)&green man are available.

Operation
