500W LED High Mast Light

  • Model: G026, 100 ~277Vac/277~480Vac
  • Luminous Flux:53000lm
  • Hiflux LEDs with long lifetime more than 100,000 hrs
  • Comply with UL,CE, ISO9001
  • Inquiry Send Email

    Description

    500W LED high mast light

    • Save 50-70% power consumption

    • Latest technology on Hi-Flux LEDs (100,000 hours lifetime)

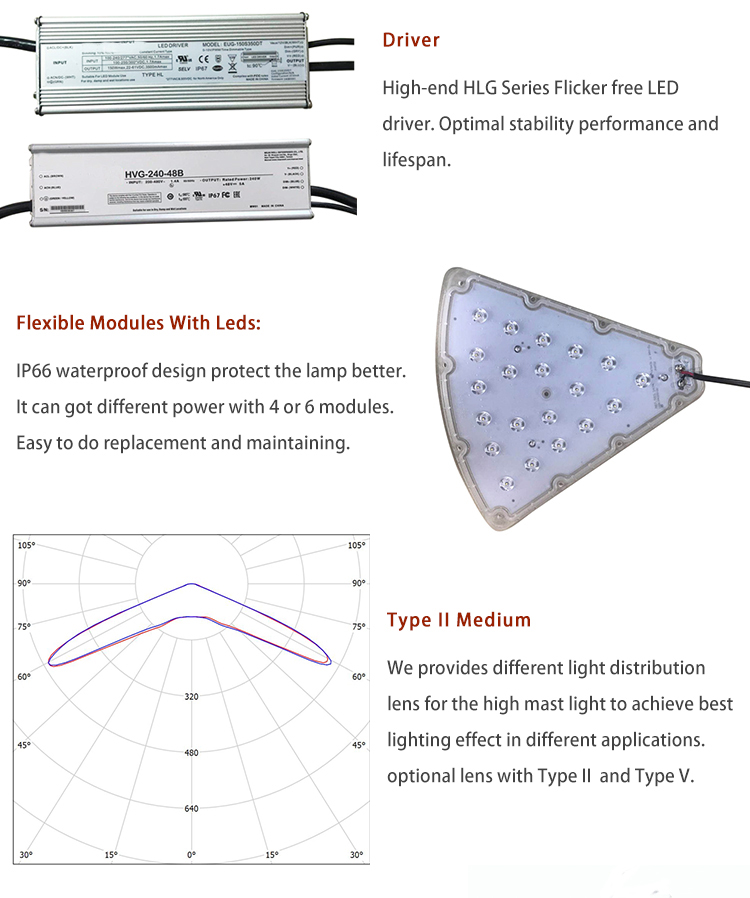

    • Special secondary optical lens design to maximize light output & uniformity

    • Surge Protection added as a necessary protection device for the electronics

    • Die cast aluminum enclosure to improve heat dissipation

    • Operation Voltage : 100 ~277Vac or 277~480Vac



    Power

    380W

    500W

    600W

    Luminous Flux

    39900lm

    53000lm

    64800lm

    Luminous Efficacy

    130lm/W

    123lm/W

    123lm/W

    LEDs (3W)

    84pcs

    120pcs

    168pcs

    Color Temperature

    4,000±300K

    5,000±300K

    4,000±300K

    5,000±300K

    4,000±300K

    5,000±300K

    Power Factor

    >0.95

    >0.95

    >0.95

    CRI

    >70

    >70

    >70

    Dimension

    Φ596*249 mm

    Φ596*249 mm

    Φ596*249 mm

    Package

    (1pc in 1 carton )

    680*680*330 mm

    22kg

    680*680*330 mm

    23kg

    680*680*330 mm

    23kg
