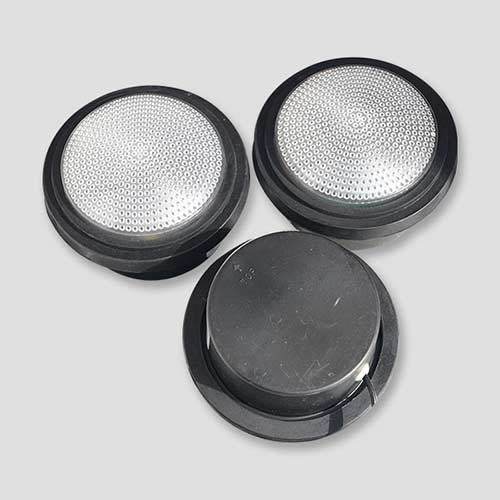

100mm Waterproof DC12V Red Green Light Mini LED Traffic Light

Model: XH100-C02RD-2A, 100mm

Luminous Intensity>100cd , Hi-flux LEDs

Long lifetime more than 100,000 hrs

Comply with CE, EN12368, RoHS, ISO9001

100mm Waterproof DC12V Red Green Light Mini led traffic light

Waterproof Traffic Module

Retrofit design ＆ UV stabilized shell

Wide viewing angles& low power consumption

Even brightness ＆ standard chromatogram

Compatibility with most traffic housings and controllers

Description		Distribution of Luminous Intensity		Packing Size(cm)		IP Grade	Lens Features	Weight (kg)
100mm traffic Module		W		30pcs in 1ctn,79X37X13		IP65	Fresnel Lens	0.3
Color	Diameter	Typical Wavelength	Phantom Class	Impact Resistance	Luminous Intensity	Turn on/off time	Voltage	Rated Power
Red	Φ100mm	626nm	5	IR3	>100cd	≤75ms	120vac-230vac	6w
Yellow	Φ100mm	592nm	5	IR3	>100cd	≤75ms	120vac-230vac	6w
Green	Φ100mm	505nm	5	IR3	>100cd	≤75ms	120vac-230vac	6w
