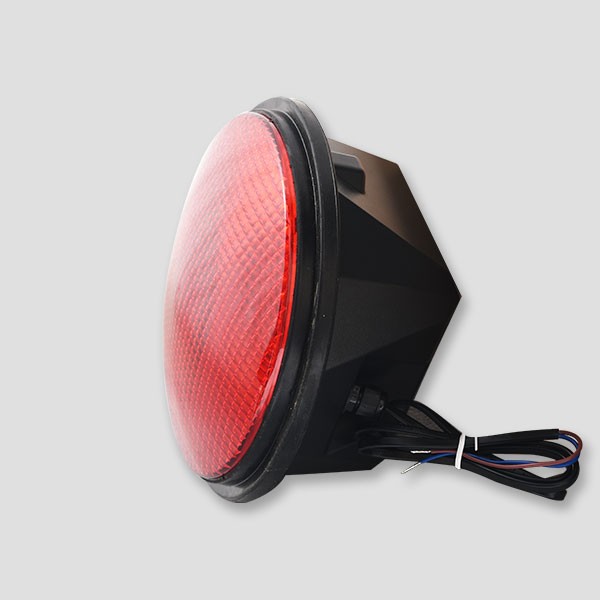

EN12368 Red Green Traffic Signal Light Lamp Module

Model: XH200-C02RYGD-2A, 200mm

Distribution of Luminous Intensity: W, 3/2

Phantom Class: 5

Comply with CE, EN12368, RoHS, ISO9001

EN12368 Red Green Traffic Signal Light Lamp Module

Waterproof 8" Traffic Module

Retrofit design ＆ UV stabilized shell

Wide viewing angles& low power consumption

Even brightness ＆ standard chromatogram

Compatibility with most traffic housings and controllers

Description		Distribution of Luminous Intensity		Packing Size(cm)		IP Grade	Lens Features	Weight (kg)
200mm traffic Module		W, 3/2		10pcs in 1ctn,46X25X67		IP65	Fresnel Lens	0.8
Color	Diameter	Typical Wavelength	Phantom Class	Impact Resistance	Luminous Intensity	Turn on/off time	Voltage	Rated Power
Red	Φ200mm	626nm	5	IR3	>600cd	≤75ms	120vac-230vac	10w
Yellow	Φ200mm	592nm	5	IR3	>600cd	≤75ms	120vac-230vac	10w
Green	Φ200mm	505nm	5	IR3	>600cd	≤75ms	120vac-230vac	10w
