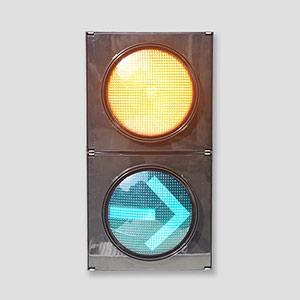

10 Year Warranty Red Yellow Green Arrow LED Traffic Signal Light Manufacturer

XH200-C02GD-2A With Arrow Mask

S1/S2

Phantom Class: 5

Comply with CE, EN12368, RoHS, ISO9001

10 Year Warranty Red Yellow Green Arrow LED Traffic Signal Light Manufacturer

Waterproof 8" Traffic Module

10 year full performance warranty

Retrofit design ＆ UV stabilized shell

Wide viewing angles& low power consumption

Even brightness ＆ standard chromatogram

Compatibility with most traffic housings and controllers

Description		Distribution of Luminous Intensity		Packing Size(cm)		IP Grade	Lens Features	Weight (kg)
200mm Arrow Module		S1/S2		10pcs in 1ctn,46X25X67		IP65	Fresnel Lens	0.8
Color	Diameter	Typical Wavelength	Phantom Class	Impact Resistance	Luminance	Turn on/off time	Voltage	Rated Power
Red	Φ200mm	626nm	5	IR3	S1/S2	≤75ms	120vac-230vac	10w
Yellow	Φ200mm	592nm	5	IR3	S1/S2	≤75ms	120vac-230vac	10w
Green	Φ200mm	505nm	5	IR3	S1/S2	≤75ms	120vac-230vac	10w
