Description

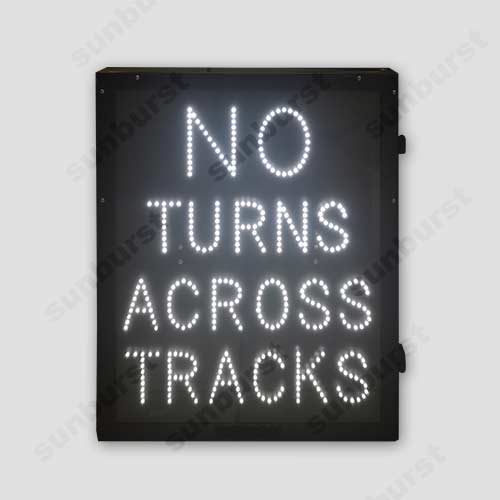

LED blank out sign ---NO TURN ACROSS TRACKS
Low power consumption & long operating lifetime LEDs (100,000 hours);
Aluminum housing and door frame with 0.125 inch thickness;
Minimum of 30 degree viewing angel centered optical axis;
Fully compatible with NEMA controllers/conflict monitors;
Moisture proof and mechanical vibration protection;
Multiple mounting and hardware available;
Complete blank out when de-energized;
Stainless steel fasteners and hardware;
Single or multiple image displays ;
Custom blank out sign design available
|
Model number |
Size (Inch) |
Power (W) |
Voltage (VAC) |
Power Factor | Operation Temperature |
| BP18-18 | 18" H*18" W | 15W-30W | 90-135 VAC/60Hz | > 90% | -34 to +74°C |
| BP18-24 | 18" H*24" W | 15W-30W | 90-135 VAC/60Hz | > 90% | -34 to +74°C |
| BP24-24 | 24" H*24" W | 15W-30W | 90-135 VAC/60 Hz | > 90% | -34 to +74°C |
| BP28-28 | 28" H *28" W | 15W-30W | 90-135 VAC/60Hz | > 90% | -34 to +74°C |
| BP24-36 | 24" H *36" W | 15W-30W | 90-135 VAC/60Hz | > 90% | -34 to +74°C |
| BP30-24 | 30" H*24" W | 15W-30W | 90-135 VAC/60Hz | > 90% | -34 to +74°C |
| BP30-30 | 30" H*30" W | 15W-30W | 90-135 VAC/60Hz | > 90% | -34 to +74°C |
| BP36-36 | 36" H*36" W | 15W-30W | 90-135 VAC/60Hz | > 90% | -34 to +74°C |
| BP36-30 | 36" H*30" W | 15W-30W | 90-135 VAC/60Hz | > 90% | -34 to +74°C |
| BP36-42 |
36" H*42" W |
15W-30W | 90-135 VAC/60Hz | > 90% | -34 to +74°C |
| BP38-28 | 38" H x 28"W | 15W-30W | 90-135 VAC/60Hz | > 90% | -34 to +74°C |
| BP42-30 |
42" H x 30" W |
15W-30W | 90-135 VAC/60Hz | > 90% | -34 to +74°C |
| BP48-30 | 48" H*30" W | 15W-30W | 90-135 VAC/60Hz | > 90% | -34 to +74°C |
| BP48-48 | 48" H*48" W | 15W-30W | 90-135 VAC/60 Hz | > 90% | -34 to +74°C |
