Home Products LED Traffic Signals Φ300m Traffic Signal Light 300mm U Turn Traffic Light

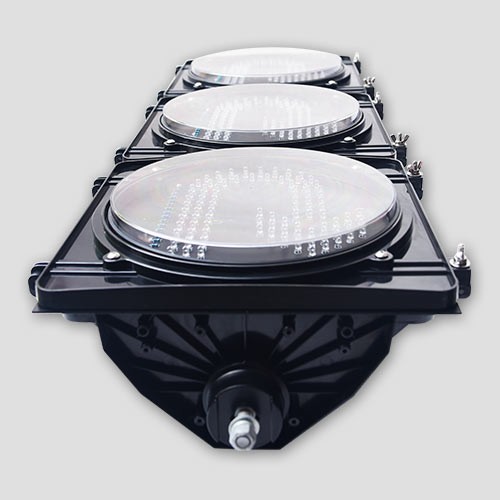

300mm U Turn Traffic Light

  • Model: JD300-3-Pixel, 300mm
  • Pixel LEDs with long lifetime more than 100,000 hrs
  • Central Light Intensity: >400cd, ITE
  • Comply with ITE, ISO9001
    • Sunburst LED Traffic Signal Heads are composed of 5mm LED signal modules or SMD LED signal inserts The color coordinates of LEDs meet international standards It has high light output with low power consumption Installation is easy and maintenance is almost not required The brackets used for mounting the head to pole are supplied with the body together Signal body(case) and visor are made of polycarbonate material and is resistant to outdoor conditions You can save energy by replacing the existing old signal lights with LED signal heads or LED modules only
    Inquiry Send Email

    Description

    300mm U Turn Traffic Light

    Retrofit design ＆ UV stabilized shell

    Wide viewing angles& low power consumption

    Even brightness ＆ standard chromatogram

    Compatibility with most traffic housings and controllers

    Description

    Distribution of
    Luminous Intensity

    Dimension(mm)

    Housing
    Material

    Housing Color

    Weight (kg)

    300mm traffic aspect

    Horizontal +/-30°

    1044 X 342 X 168

    PC

    Black

    10

    Color

    Diameter

    Typical Wavelength


    Power

    Factor


    Impact Resistance

    Luminous
    Intensity

    Turn on/off time

    Voltage

    Rated Power

    Red

    Φ300mm

    626nm

    >90%

    IR3

    >100cd

    ≤75ms

    120vac-230vac

    9w

    Yellow

    Φ300mm

    592nm

    >90%

    IR3

    >100cd

    ≤75ms

    120vac-230vac

    10w

    Green

    Φ300mm

    505nm

    >90%

    IR3

    >100cd

    ≤75ms

    120vac-230vac

    10w
