Home Products Lane Control Signs 300mm Red Cross And Green Arrow Traffic Signal Light

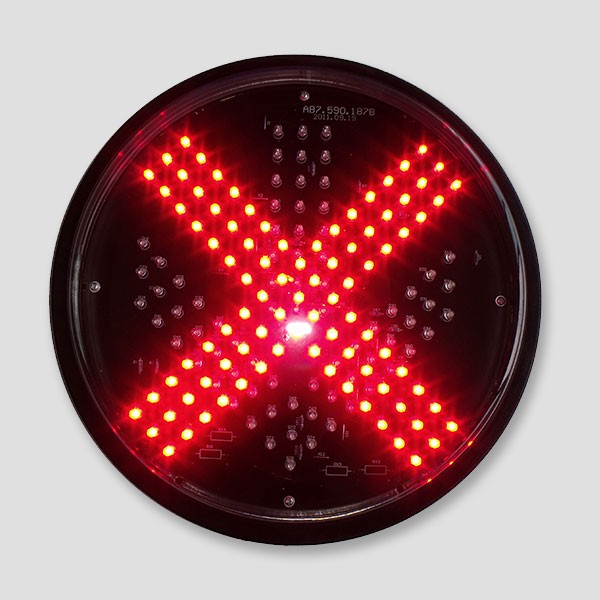

300mm Red Cross And Green Arrow Traffic Signal Light300mm Red Cross And Green Arrow Traffic Signal Light

300mm Red Cross And Green Arrow Traffic Signal Light

  • Product Item:LC300-RXGA
  • Luminous Intensity>150cd
  • Wide viewing angles& low power consumption
  • Up to 10 times longer lifetime than incandescent lamp
  • Compatibility with most traffic housings and controllers
  • Inquiry Send Email

    Description

    300mm Red Cross And Green Arrow Traffic Signal Light


    LED lane control signals is designed to maintain efficient traffic flow at toll booths, tunnels, checkpoints of the weigh station on freeways, garages, parking lots or multi-lane roads. These signs show a red cross and a green arrow and are available in 200 mm (8 ") or 300 mm (12") with round lens or 400 mm and 600 mm in square structure. The structure of the signals is resistant to water, dust and impacts. The LED light source provides high intensity and low power consumption resulting in low operating costs. The viewing angle at 30 degrees. The life cycle of these signals is more than 80,000 operational hours.




    300mm Red Cross And Green Arrow Traffic Signal Light Dimension


    Model

    Number

    Size

    (mm)

    Color

    nm

    Luminous

    Intensity

    Voltage

    Range

    Power(w)

    Typical

    Lens features

    Power

    Factor

    T.H.D.

    Red cross

    300

    R (626)

    93pcs of LEDs

    >150cd

    95v-145v-

    10

    Clear lens

    Pixel look

    >0.9

    <20%

    Green arrow

    300

    G (505)

    69pcs of LEDs

    >150cd

    95v-145v-

    8

    Clear lens

    Pixel look

    >0.9

    <20%

    300mm Red Cross And Green Arrow Traffic Signal Light used in parking lot traffic light entrance and exit toll station
