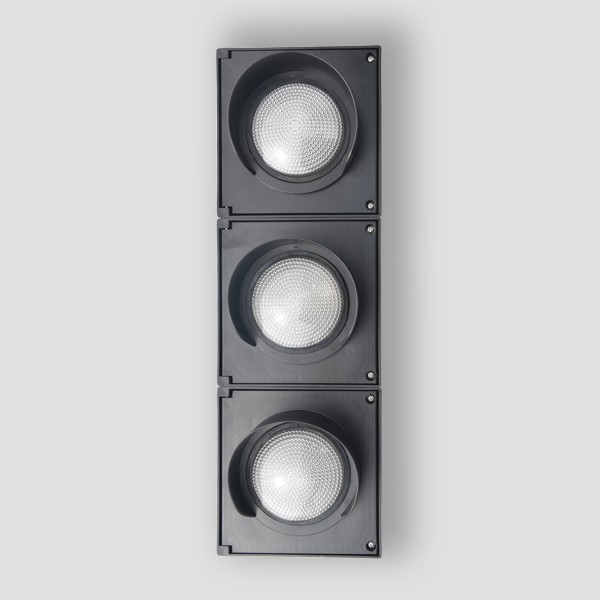

100mm Hi-flux Mini traffic signal light

Model:JD100-3-3, 100mm

Luminous Intensity>100cd , Hi-flux LEDs

Long lifetime more than 100,000 hrs

Comply with CE, EN12368, RoHS, ISO9001

100mm Hi-flux LED traffic signal light

Retrofit design ＆ UV stabilized shell

Wide viewing angles& low power consumption

Even brightness ＆ standard chromatogram

Compatibility with most traffic housings and controllers

Description		Distribution of Luminous Intensity		Dimension(mm)		Housing Material	Housing Color	Weight (kg)
100mm traffic head		Horizontal +/-30°		516 X 168 X 138		PC	Black	2.5
Color	Diameter	Typical Wavelength	Power Factor	Impact Resistance	Luminous Intensity	Turn on/off time	Voltage	Rated Power
Red	Φ100mm	626nm	>90%	IR3	>100cd	≤75ms	120vac-230vac	6w
Yellow	Φ100mm	592nm	>90%	IR3	>100cd	≤75ms	120vac-230vac	6w
Green	Φ100mm	505nm	>90%	IR3	>100cd	≤75ms	120vac-230vac	6w
