Description

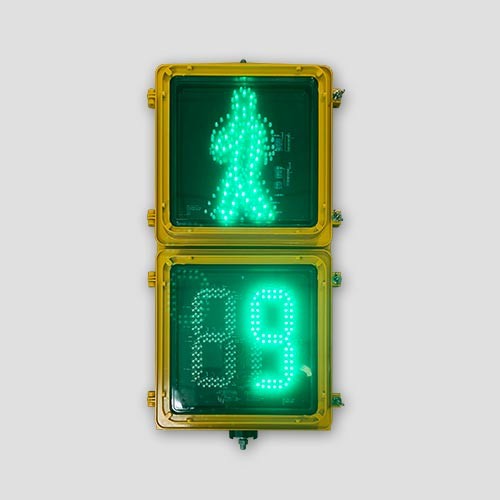

Red Static Green Dynamic PED With Countdown
Retrofit design ＆ UV stabilized shell.
Wide viewing angles& low power consumption.
Even brightness ＆ standard chromatogram.
Compatibility with most traffic housings and controllers.
2-section of pedestrian traffic head is dynamic green,
static red with two .
countdown timer that is intended for indicating the
remaining time to the pedestrians when they walk across the street.
|
Description |
Luminance |
Packing Size(cm) |
IP Grade |
Lens Feature |
Weight (kg) |
||
|
Traffic Head |
>150cd |
2pcs in 1ctn,40*45*72 |
IP55 |
Clear lens 5mm LEDs |
8 |
||
|
Model |
Symbols |
Power Factor |
Warranty |
OperationTemperature |
Turn on/off time |
Voltage |
Rated Power |
|
300mm |
Red green PED |
>90% |
3 years |
-40°F~+165°F |
≤75ms |
120vac-230vac |
＜9w |
|
300mm |
Countdown Timer |
>90% |
3 years |
-40°F~+165°F |
≤75ms |
120vac-230vac |
＜9w |
