Audible Pedestrian Bollards System

  • Dimension:Ø168*1000 mm
  • Sound level: Two different levels at day and at nigh
  • Sensor distance:0~6m
  • Audible Pedestrian bollards  , Traffic Signal  , Sunburst Traffic light  , LED Traffic Signal  , Traffic Aspect  , LED Traffic Lights  , Yellow  , Red  , Green  , Module  , Traffic Signal Head  , LED Signal Module  , Phantom  , IP65  , Power LED Module  , Sunburst Traffic Signal Module  , Traffic Signal Insert  , High Flux Traffic Light  , Sunburst Signal Module  , Sunburst Traffic Signal
    Inquiry Send Email

    Description

    Many accidents occur on pedestrian crossings because people are distracted by looking at their smart phones instead of paying attention to the traffic lights. SUNBURST audible pedestrian bollard use warning sound, such as “RED LIGT NOW,PLEASE DON’T CROSS”, to draw the attention of people.


    Pictures:



    Features:

    ²  If people cross the street at red light, the speaker will send out warning sound.

    ²  Different sound levels at day and at night to reduce the sound pollution at night.

    ²  Easy to install and connect to existing pedestrian lantern directly


    Parameters:

    Voltage:DC24V                                         Power:≤7W

    Material: Cold rolled sheet                 Dimension:Ø168*1000 mm

    Lamp:red and green           Sound level: Two different levels at day and at nigh

    Sensor distance:0~6m                   Operation Temperature.:-20℃ ~ 75℃

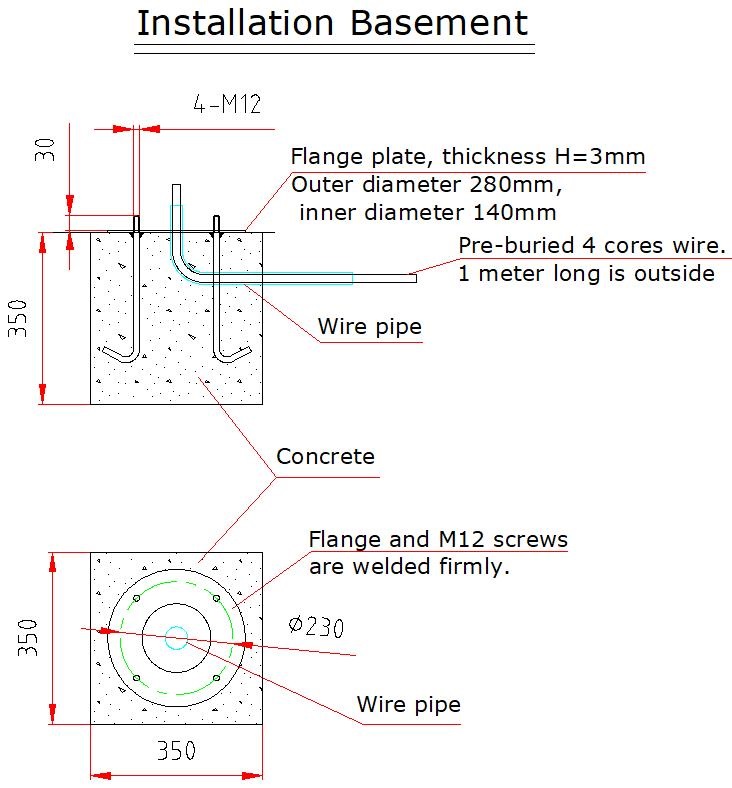

    Installation

    Main bollard and subsidiary bollard are installed side by side at one side of zebra crossing. Make sure the infrared sensor windows of two bollards face to face and at the same level.

    Connect the bollard to the closest pedestrian directly. To make safer, we can choose installing a controller box to convert the voltage from 220vac or 120vac to 24vdc. Four cores sheathed wire can be chosen for connecting the two bollards.

    If people go cross between two bollards at red light , the speaker will send out warning sound, such as “RED LIGT NOW,PLEASE DON’T CROSS”.
