Home Products LED Luminaires LED Street Luminaires 200W LED Street Luminaires
200W LED Street Luminaires200W LED Street Luminaires

200W LED Street Luminaires

  • Model: LLD-060, 100 ~277Vac/277~480Vac
  • Luminous Flux:22200lm
  • Hiflux LEDs with long lifetime more than 100,000 hrs
  • Comply with UL,CE, ISO9001
  • Inquiry Send Email

    Description

    200W LED Street Luminaires

    • Save 50-70% power consumption

    • Latest technology on Hi-Flux LEDs (100,000 hours lifetime)
    • Special secondary optical lens design to maximize light output & uniformity
    • Surge Protection added as a necessary protection device for the electronics

    • Die cast aluminum enclosure to improve heat dissipation

    Power

    90~100W

    140~150W

    185~200W

    Luminous Flux

    11700lm

    17250lm

    22200lm

    Luminous Efficacy

    117lm/W

    115lm/W

    111lm/W

    LEDs (3W)

    52pcs

    52pcs

    78pcs

    Color Temperature

    4,000±300K

    5,000±300K

    4,000±300K

    5,000±300K

    4,000±300K

    5,000±300K

    Power Factor

    >0.95

    >0.95

    >0.95

    CRI

    >70

    >70

    >70

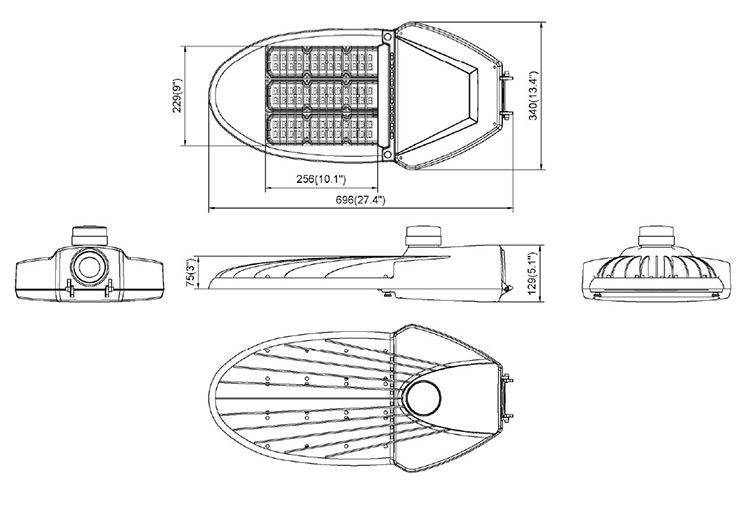

    Dimension

    696*340*129 mm

    696*340*129 mm

    696*340*129 mm

    Package

    (2pcs in 1 carton )

    1020*310*420 mm

    15kgs

    1020*310*420 mm

    15kgs

    1020*310*420 mm

    15kgs

    Operation Voltage : 100 ~277Vac or 277~480Vac
